Please send RFQ , we will respond immediately.

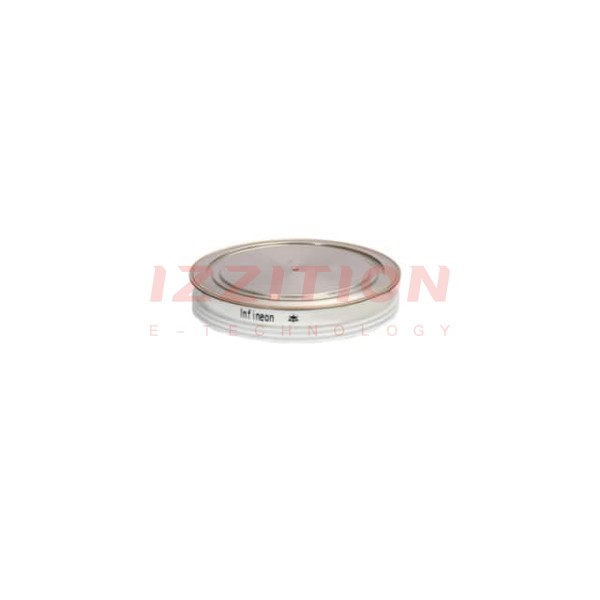

| Part Number | D740N40TXPSA1 | D740N44TXPSA1 | D740N48TXPSA1 | D740N42TXPSA1 | D740N46TXPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 4000 V | 4400 V | 4800 V | 4200 V | 4600 V |
| Current - Average Rectified (Io) | 750A | 750A | 750A | 750A | 750A |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 700 A | 1.45 V @ 700 A | 1.45 V @ 700 A | 1.45 V @ 700 A | 1.45 V @ 700 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 70 mA @ 4000 V | 70 mA @ 4400 V | 70 mA @ 4800 V | 70 mA @ 4200 V | 70 mA @ 4600 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AB, B-PUK | DO-200AB, B-PUK | DO-200AB, B-PUK | DO-200AB, B-PUK | DO-200AB, B-PUK |
| Supplier Device Package | - | - | - | - | - |
| Operating Temperature - Junction | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C |
