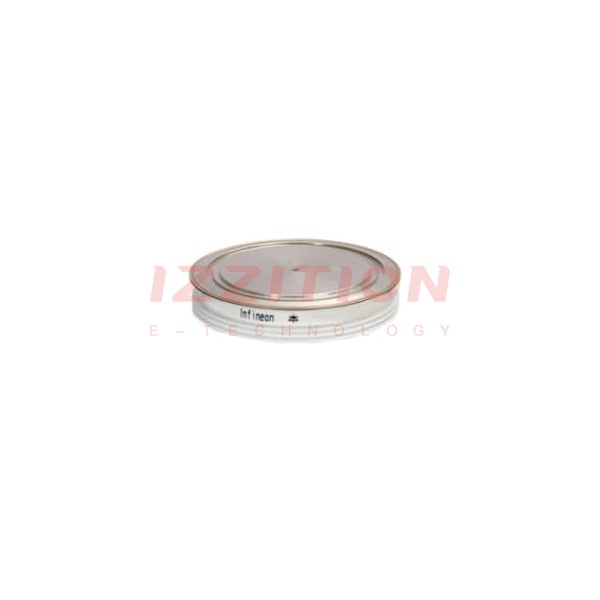

| Part Number | D690S24TXPSA1 | D690S26TXPSA1 | D690S20TXPSA1 | D690S22TXPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2400 V | 2600 V | 2000 V | 2200 V |
| Current - Average Rectified (Io) | 690A | 690A | 690A | 690A |
| Voltage - Forward (Vf) (Max) @ If | 2.7 V @ 3000 A | 2.7 V @ 3000 A | 2.7 V @ 3000 A | 2.7 V @ 3000 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 9 µs | 9 µs | 9 µs | 9 µs |
| Current - Reverse Leakage @ Vr | 25 mA @ 2400 V | 25 mA @ 2600 V | 25 mA @ 2000 V | 25 mA @ 2200 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AB, B-PUK | DO-200AB, B-PUK | DO-200AB, B-PUK | DO-200AB, B-PUK |
| Supplier Device Package | - | - | - | - |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
