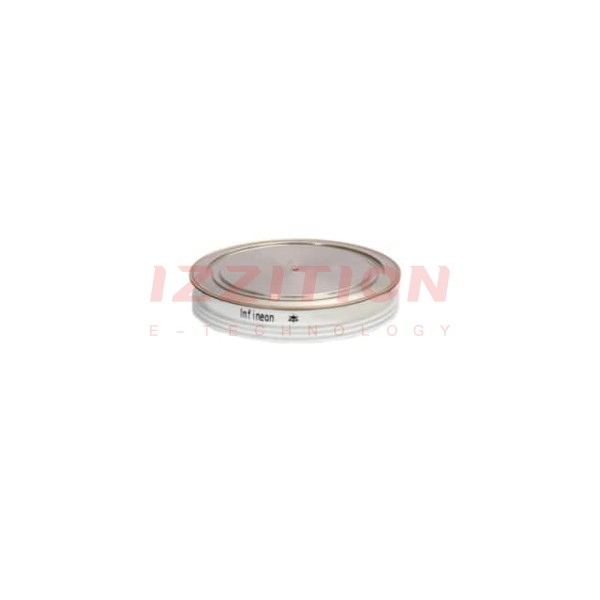

| Part Number | D3041N68TXPSA1 | D3001N68TXPSA1 | D3041N58TXPSA1 | D3041N60TXPSA1 | D3041N65TXPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 6800 V | 6800 V | 5800 V | 6000 V | 6500 V |
| Current - Average Rectified (Io) | 4090A | 3910A | 4090A | 4090A | 4090A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 4000 A | 1.7 V @ 4000 A | 1.7 V @ 4000 A | 1.7 V @ 4000 A | 1.7 V @ 4000 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 mA @ 6800 V | 100 mA @ 6800 V | 100 mA @ 5800 V | 100 mA @ 6000 V | 100 mA @ 6500 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AE | DO-200AE | DO-200AE | DO-200AE | DO-200AE |
| Supplier Device Package | - | - | - | - | - |
| Operating Temperature - Junction | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C |
