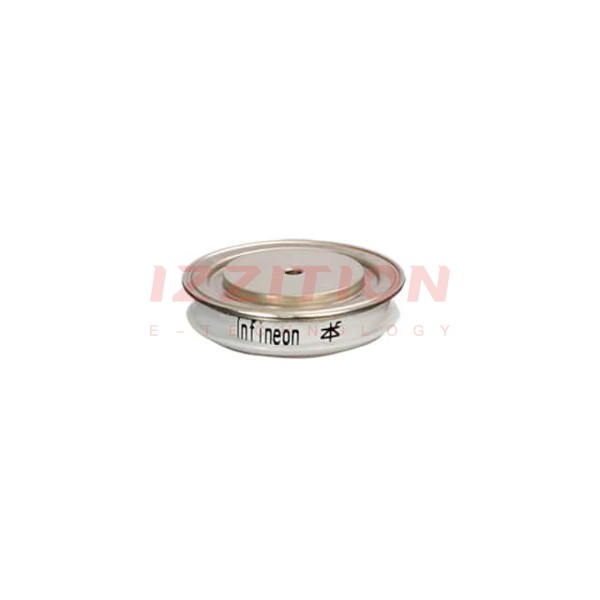

| Part Number | D1800N42TVFXPSA1 | D1800N43TVFXPSA1 | D1800N44TVFXPSA1 | D1800N46TVFXPSA1 | D1800N48TVFXPSA1 | D1800N40TVFXPSA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 4200 V | 4300 V | 4400 V | 4600 V | 4800 V | 4000 V |
| Current - Average Rectified (Io) | 1800A | 1800A | 1800A | 1800A | 1800A | 1800A |
| Voltage - Forward (Vf) (Max) @ If | 1.32 V @ 1500 A | 1.32 V @ 1500 A | 1.32 V @ 1500 A | 1.32 V @ 1500 A | 1.32 V @ 1500 A | 1.32 V @ 1500 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 mA @ 4200 V | 100 mA @ 4300 V | 100 mA @ 4400 V | 100 mA @ 4600 V | 100 mA @ 4800 V | 100 mA @ 4000 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AC, K-PUK | DO-200AC, K-PUK | DO-200AC, K-PUK | DO-200AC, K-PUK | DO-200AC, K-PUK | DO-200AC, K-PUK |
| Supplier Device Package | - | - | - | - | - | - |
| Operating Temperature - Junction | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C |
