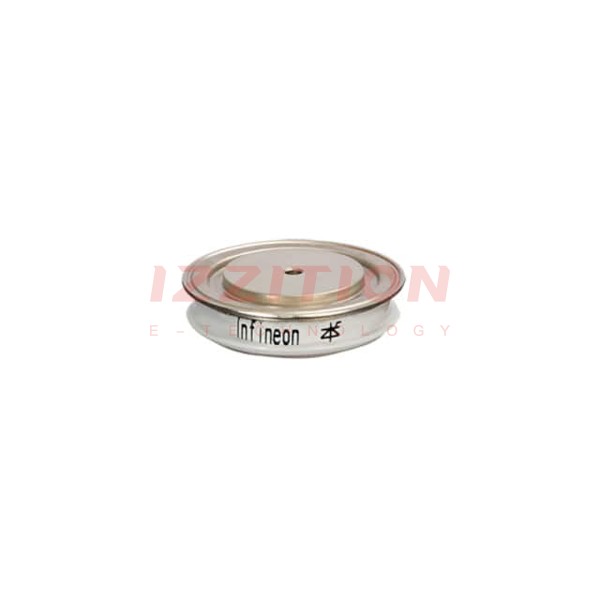

| Part Number | D1230N18TXPSA1 | D1230N14TXPSA1 | D1230N16TXPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1800 V | 1400 V | 1600 V |
| Current - Average Rectified (Io) | 1230A | 1230A | 1230A |
| Voltage - Forward (Vf) (Max) @ If | 1.063 V @ 800 A | 1.063 V @ 800 A | 1.063 V @ 800 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 50 mA @ 1800 V | 50 mA @ 1400 V | 50 mA @ 1600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AA, A-PUK | DO-200AA, A-PUK | DO-200AA, A-PUK |
| Supplier Device Package | - | - | - |
| Operating Temperature - Junction | -40°C ~ 180°C | -40°C ~ 180°C | -40°C ~ 180°C |
