Please send RFQ , we will respond immediately.
| Part Number | CYW20710A1KUBXGT | CYW20713A1KUBXGT | CYW20715A1KUBXGT |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.0 | Bluetooth v4.0 +EDR | Bluetooth v4.0 +EDR |
| Modulation | - | 4DQPSK, 8DPSK, GFSK | 4DQPSK, 8DPSK, GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 3Mbps | 3Mbps | 3Mbps |
| Power - Output | 10dBm | 10dBm | 10dBm |
| Sensitivity | -91dBm | -91dBm | -91dBm |
| Memory Size | - | - | - |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, JTAG, SPI, UART, USB | I²C, I²S, SPI, UART |
| GPIO | 8 | 8 | 8 |
| Voltage - Supply | 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Current - Receiving | 32mA | 32mA | 32mA |
| Current - Transmitting | 65mA | 59mA | 65mA |
| Operating Temperature | -30°C ~ 85°C | -40°C ~ 85°C | -30°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

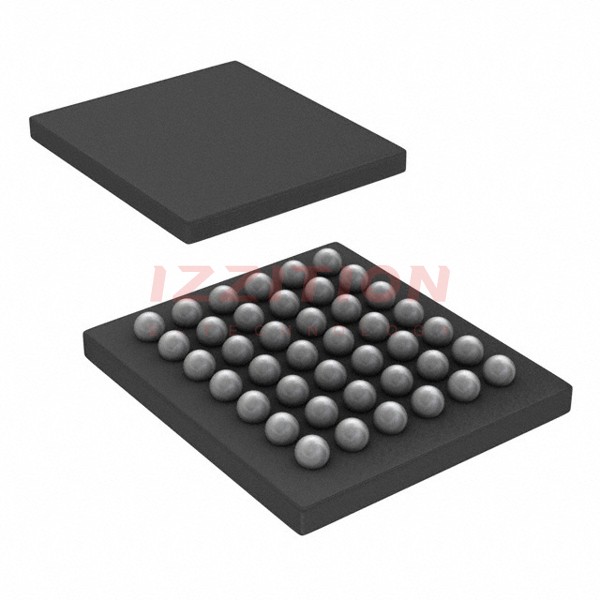

| Package / Case | 42-UFBGA, WLBGA | 42-UFBGA, WLBGA | 42-UFBGA, WLBGA |
| Supplier Device Package | 42-WLBGA (3.02x2.51) | 42-WLBGA (3.02x2.51) | 42-WLBGA (3.02x2.51) |
