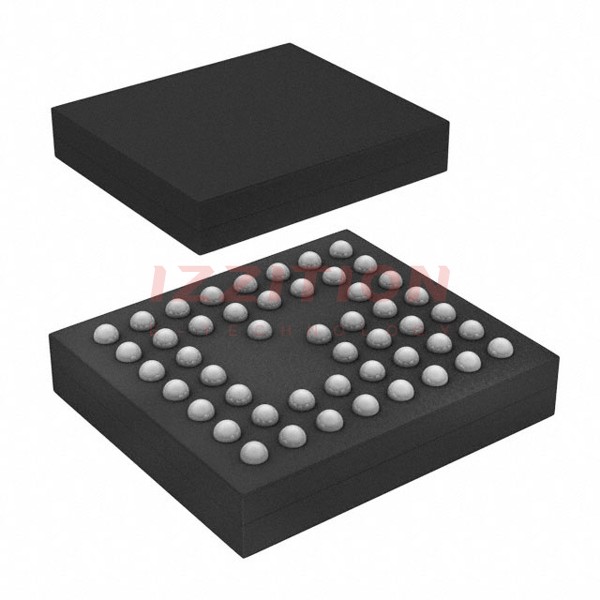

| Part Number | CYW20706UA1KFFB4G | CYW20707UA1KFFB4G | CYW20706UA1KFFB1G |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.2 | Bluetooth v4.2 | Bluetooth v4.2 |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 12dBm | 9dBm | 12dBm |
| Sensitivity | -96.5dBm | -96.5dBm | -96.5dBm |
| Memory Size | 848kB ROM, 352kB RAM | - | 848kB ROM, 352kB RAM |
| Serial Interfaces | I²C, I²S, SPI, UART | I²S, SPI, UART | I²C, I²S, SPI, UART |
| GPIO | 7 | 8 | 7 |
| Voltage - Supply | 3.3V | 3.3V | 3.3V |
| Current - Receiving | 12.5mA | 26.4mA | 12.5mA |
| Current - Transmitting | 26.5mA | 60mA | 26.5mA |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 49-VFBGA, FCBGA | 49-VFBGA, FCBGA | 49-VFBGA, FCBGA |
| Supplier Device Package | 49-FCBGA (4.5x4) | 49-FCBGA (4.5x4) | 49-FCBGA (4.5x4) |
