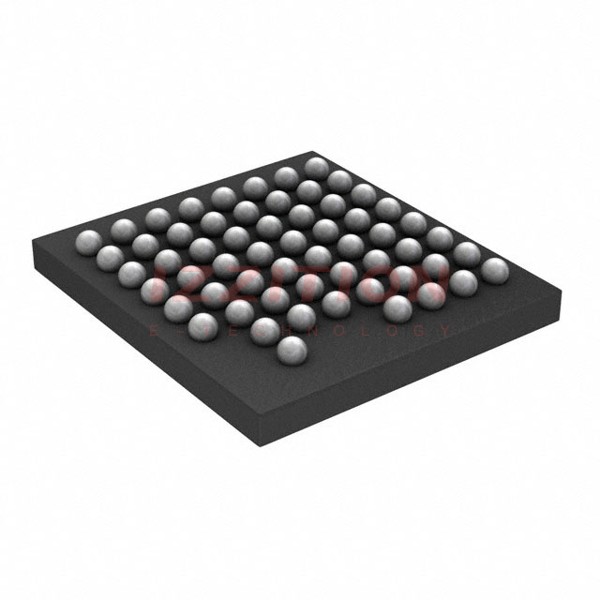

| Part Number | CYBL10563-68FNXIT | CYBL10563-68FLXIT |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Type | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.1 | Bluetooth v4.1 |
| Modulation | GFSK | GFSK |
| Frequency | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 1Mbps | 1Mbps |
| Power - Output | 3dBm | 3dBm |
| Sensitivity | -89dBm | -89dBm |
| Memory Size | 128kB Flash, 16kB SRAM | 128kB Flash, 16kB SRAM |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART |
| GPIO | 36 | 36 |
| Voltage - Supply | 1.9V ~ 5.5V | 1.9V ~ 5.5V |
| Current - Receiving | 16.4mA | 16.4mA |
| Current - Transmitting | 15.6mA | 15.6mA |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 68-UFBGA, WLCSP | 68-XFBGA, WLCSP |
| Supplier Device Package | 68-WLCSP (3.52x3.91) | 68-WLCSP (3.52x3.91) |
