| Part Number | CY9BF506NBBGL-GK6E1 | CY9BF504NBBGL-GK6E1 | CY9BF505NBBGL-GK6E1 | CY9BF506NABGL-GK6E1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | - |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | - |
| Speed | 80MHz | 80MHz | 80MHz | - |
| Connectivity | CANbus, CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | CANbus, CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | CANbus, CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | - |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | - |
| Number of I/O | 80 | 80 | 80 | - |
| Program Memory Size | 512KB (512K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | - |
| Program Memory Type | Flash | Flash | Flash | - |
| EEPROM Size | - | - | - | - |
| RAM Size | 64K x 8 | 32K x 8 | 48K x 8 | - |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | - |
| Oscillator Type | Internal | Internal | Internal | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |

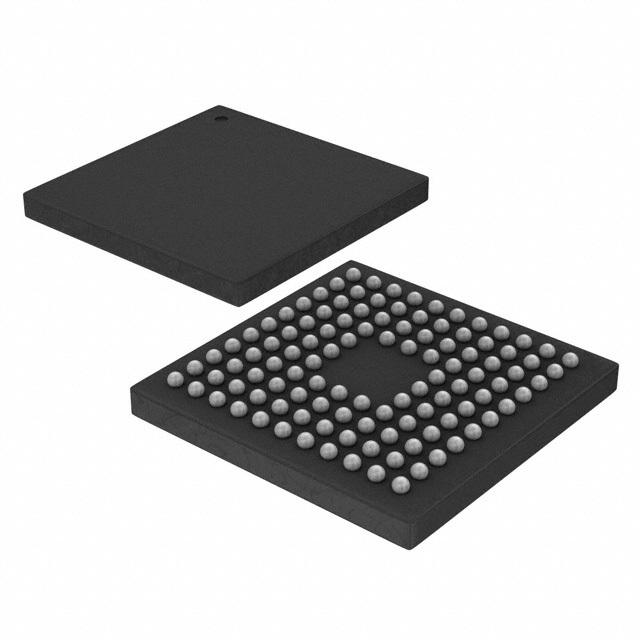

| Package / Case | 112-LFBGA | 112-LFBGA | 112-LFBGA | - |
| Supplier Device Package | 112-PFBGA (10x10) | 112-PFBGA (10x10) | 112-PFBGA (10x10) | - |
