| Part Number | CY9BF315NBGL-GE1 | CY9BF316NBGL-GE1 | CY9BF312NBGL-GE1 | CY9BF314NBGL-GE1 |
|---|---|---|---|---|
| Manufacturer | Cypress Semiconductor Corp | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 144MHz | 144MHz | 144MHz | 144MHz |
| Connectivity | CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB | CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 83 | 83 | 83 | 83 |
| Program Memory Size | 416KB (416K x 8) | 544KB (544K x 8) | 160KB (160K x 8) | 288KB (288K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 48K x 8 | 64K x 8 | 16K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

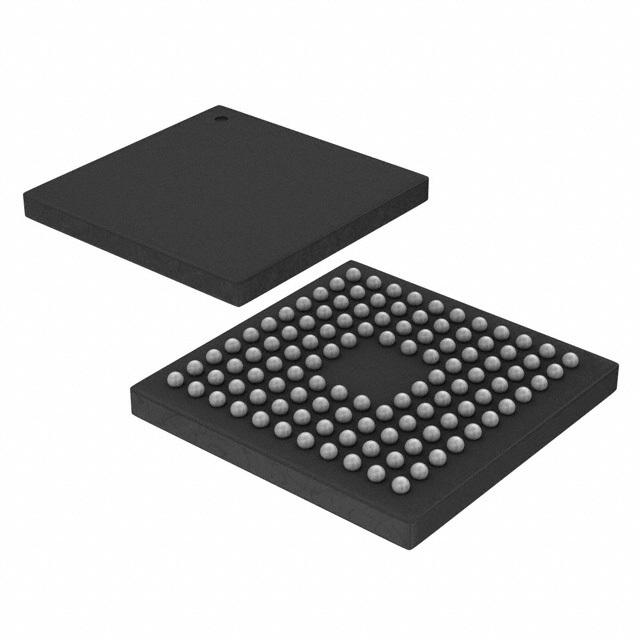

| Package / Case | 112-LFBGA | 112-LFBGA | 112-LFBGA | 112-LFBGA |
| Supplier Device Package | 112-PFBGA (10x10) | 112-PFBGA (10x10) | 112-PFBGA (10x10) | 112-PFBGA (10x10) |
