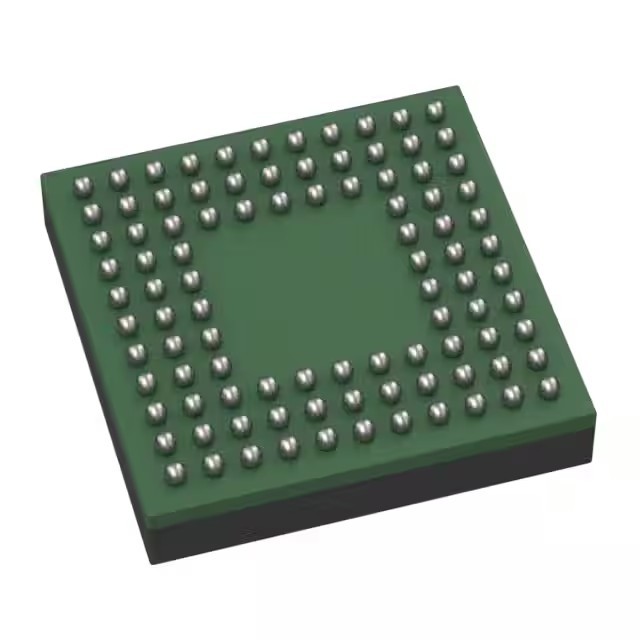

| Part Number | CY9AF156MBBGL-GE1 | CY9AF156NBBGL-GE1 | CY9AF156MBGL-GE1 | CY9AF154MBBGL-GE1 | CY9AF155MBBGL-GE1 | CY9AF156MABGL-GE1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | CSIO, EBI/EMI, I²C, SPI, UART/USART | CSIO, EBI/EMI, I²C, SPI, UART/USART | CSIO, EBI/EMI, I²C, SPI, UART/USART | CSIO, EBI/EMI, I²C, SPI, UART/USART | CSIO, EBI/EMI, I²C, SPI, UART/USART | CSIO, EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 66 | 83 | 66 | 66 | 66 | 66 |
| Program Memory Size | 544KB (544K x 8) | 544KB (544K x 8) | 544KB (544K x 8) | 288KB (288K x 8) | 416KB (416K x 8) | 544KB (544K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 | 32K x 8 | 48K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Data Converters | A/D 17x12b | A/D 24x12b | A/D 17x12b | A/D 17x12b | A/D 17x12b | A/D 17x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 96-LFBGA | 112-LFBGA | 96-LFBGA | 96-LFBGA | 96-LFBGA | 96-LFBGA |
| Supplier Device Package | 96-FBGA (6x6) | 112-PFBGA (10x10) | 96-FBGA (6x6) | 96-FBGA (6x6) | 96-FBGA (6x6) | 96-FBGA (6x6) |
