Please send RFQ , we will respond immediately.

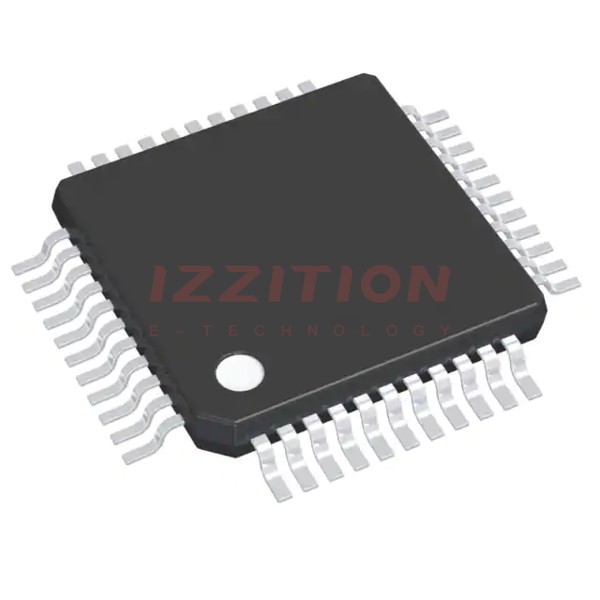

| Part Number | CY96F615RBPMC-GS-UJE1 | CY96F625RBPMC-GS-UJE1 | CY96F615RBPMC-GS-UJE2 | CY96F615RBPMC-GT-UJE1 | CY96F612RBPMC-GS-UJE1 | CY96F613RBPMC-GS-UJE1 | CY96F615ABPMC-GS-UJE1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | F²MC-16FX | F²MC-16FX | F²MC-16FX | F²MC-16FX | F²MC-16FX | F²MC-16FX | F²MC-16FX |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CANbus, LINbus, SCI, UART/USART | CANbus, I²C, LINbus, SCI, UART/USART | CANbus, LINbus, SCI, UART/USART | CANbus, LINbus, SCI, UART/USART | CANbus, LINbus, SCI, UART/USART | CANbus, LINbus, SCI, UART/USART | LINbus, SCI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 37 | 52 | 37 | 37 | 37 | 37 | 37 |
| Program Memory Size | 160KB (160K x 8) | 160KB (160K x 8) | 160KB (160K x 8) | 160.5KB (160.5K x 8) | 64KB (64K x 8) | 96KB (96K x 8) | 160KB (160K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 10K x 8 | 10K x 8 | 10K x 8 | 10K x 8 | 4K x 8 | 10K x 8 | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 16x8/10b SAR | A/D 21x8/10b SAR | A/D 16x8/10b SAR | A/D 16x8/10b SAR | A/D 16x8/10b SAR | A/D 16x8/10b SAR | A/D 16x8/10b SAR |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-LQFP | 64-LQFP | 48-LQFP | 48-LQFP | 48-LQFP | 48-LQFP | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) | 64-LQFP (12x12) | 48-LQFP (7x7) | 48-LQFP (7x7) | 48-LQFP (7x7) | 48-LQFP (7x7) | 48-LQFP (7x7) |
