| Part Number | CY8C6137BZI-F34 | CY8C6137BZI-F54 | CY8C6117BZI-F34 | CY8C6136BZI-F34 | CY8C6137BZI-F14 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 150MHz | 150MHz | 50MHz | 150MHz | 150MHz |
| Connectivity | I²C, LINbus, QSPI, SPI, UART/USART, USB | I²C, LINbus, QSPI, SPI, UART/USART, USB | I²C, LINbus, QSPI, SPI, UART/USART, USB | I²C, LINbus, QSPI, SPI, UART/USART, USB | I²C, LINbus, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 104 | 104 | 104 | 104 | 104 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 512KB (512K x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 288K x 8 | 288K x 8 | 288K x 8 | 128K x 8 | 288K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Data Converters | A/D 8x12b SAR; D/A 1x12b | A/D 8x12b SAR; D/A 1x12b | A/D 8x12b SAR; D/A 1x12b | A/D 8x12b SAR; D/A 1x12b | A/D 8x12b SAR; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

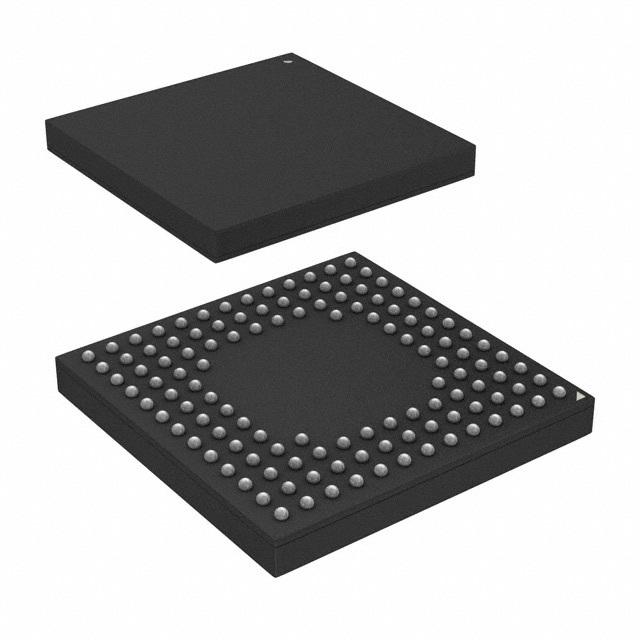

| Package / Case | 124-VFBGA | 124-VFBGA | 124-VFBGA | 124-VFBGA | 124-VFBGA |
| Supplier Device Package | 124-VFBGA (9x9) | 124-VFBGA (9x9) | 124-VFBGA (9x9) | 124-VFBGA (9x9) | 124-VFBGA (9x9) |
