| Part Number | CY8C4024LQI-S411 | CY8C4024LQI-S412 | CY8C4025LQI-S411 | CY8C4024LQI-S413 | CY8C4024LQI-S411T | CY8C4024LQI-S401 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART | I²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 19 | 27 | 19 | 34 | 19 | 19 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 4K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V |
| Data Converters | A/D 1x10b | A/D 1x10b | A/D 1x10b | A/D 1x10b | A/D 1x10b | A/D 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

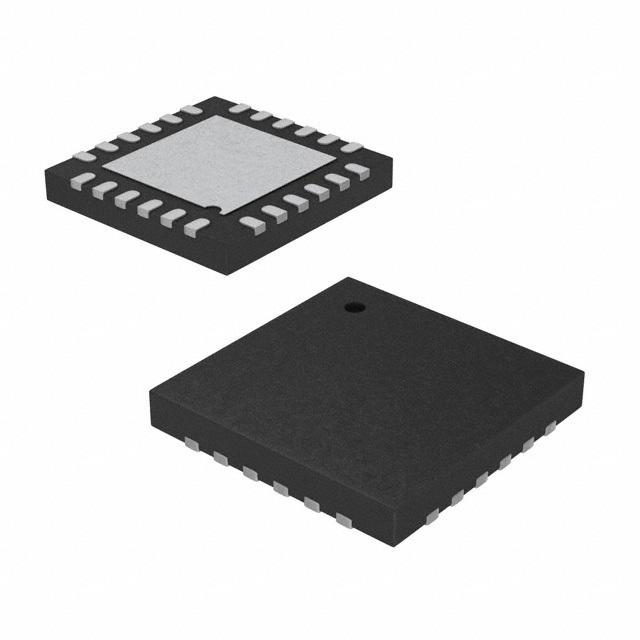

| Package / Case | 24-UFQFN Exposed Pad | 32-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 40-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 32-QFN (5x5) | 24-QFN (4x4) | 40-QFN (6x6) | 24-QFN (4x4) | 24-QFN (4x4) |
