| Part Number | CY8C3866LTI-207 | CY8C3866LTI-207T | CY8C3866LTI-209 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| Core Processor | 8051 | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit |
| Speed | 67MHz | 67MHz | 67MHz |
| Connectivity | EBI/EMI, I²C, LINbus, SPI, UART/USART, USB | EBI/EMI, I²C, LINbus, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, LINbus, SPI, UART/USART, USB |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT | CapSense, DMA, LCD, POR, PWM, WDT | CapSense, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 38 | 38 | 38 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | 2K x 8 |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V |
| Data Converters | A/D 16x20b; D/A 2x8b | A/D 16x20b; D/A 2x8b | A/D 16x20b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

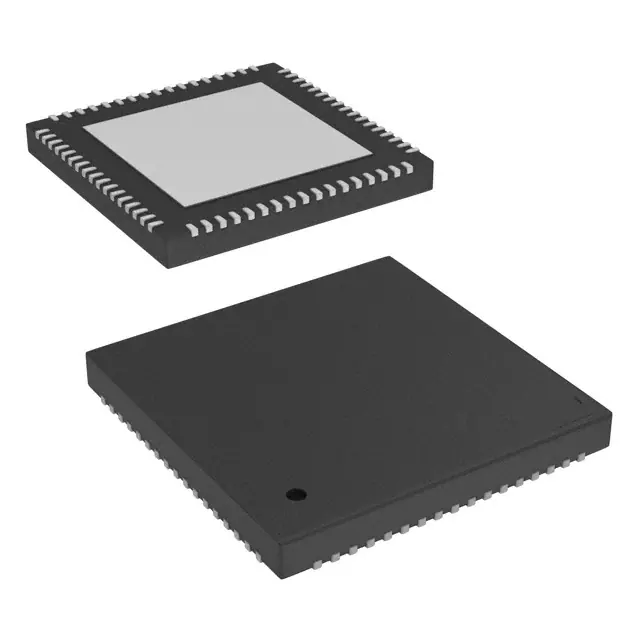

| Package / Case | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (8x8) | 68-QFN (8x8) | 68-QFN (8x8) |
