Please send RFQ , we will respond immediately.

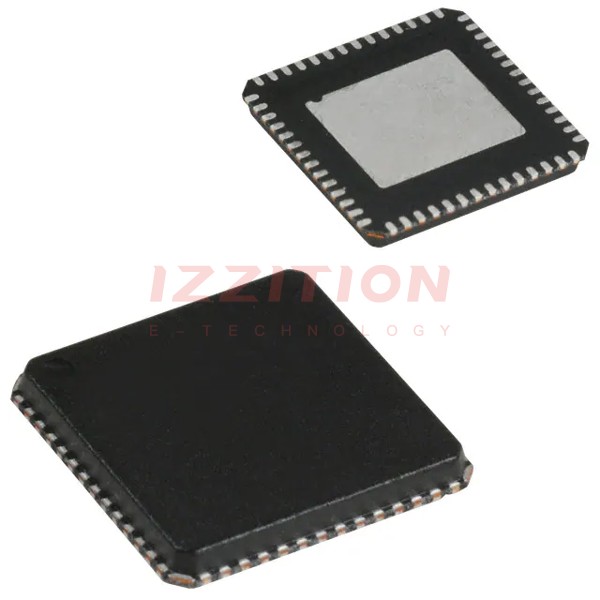

| Part Number | CY8C24794-24LFXIT | CY8C24794-24LTXIT | CY8C24894-24LFXIT | CY8C24994-24LFXIT | CY8C24794-24LQXIT | CY8C24794-24LFXI |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | M8C | M8C | M8C | M8C | M8C | M8C |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 50 | 50 | 49 | 56 | 50 | 50 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V |
| Data Converters | A/D 48x14b; D/A 2x9b | A/D 48x14b; D/A 2x9b | A/D 48x14b; D/A 2x9b | A/D 48x14b; D/A 2x9b | A/D 48x14b; D/A 2x9b | A/D 48x14b; D/A 2x9b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad | 56-VFQFN Exposed Pad | 56-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 56-UFQFN Exposed Pad | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (8x8) | 56-QFN (8x8) | 56-QFN (8x8) | 68-QFN (8x8) | 56-QFN (7x7) | 56-QFN (8x8) |
