Please send RFQ , we will respond immediately.

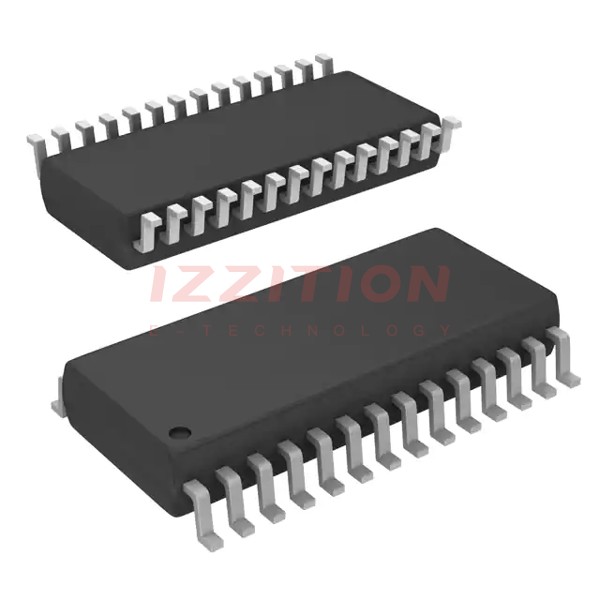

| Part Number | CY8C24423-24SIT | CY8C24123-24SIT | CY8C24223-24SIT | CY8C24423-24SI |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | M8C | M8C | M8C | M8C |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 24 | 6 | 16 | 24 |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V | 3V ~ 5.25V |
| Data Converters | A/D 2x14b; D/A 2x9b | A/D 2x14b; D/A 2x9b | A/D 2x14b; D/A 2x9b | A/D 2x14b; D/A 2x9b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.154", 3.90mm Width) | 20-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC | 8-SOIC | 20-SOIC | 28-SOIC |
