| Part Number | CY8C20336A-24LQXI | CY8C20336A-24LQXIT | CY8C20436A-24LQXI | CY8C20346A-24LQXI | CY8C20636A-24LQXI | CY8C20396A-24LQXI | CY8C20336H-24LQXI | CY8C20336AN-24LQXI | CY8C20336-24LQXI |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Applications | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing | Capacitive Sensing |
| Core Processor | M8C | M8C | M8C | M8C | M8C | M8C | M8C | M8C | M8C |
| Program Memory Type | FLASH (8kB) | FLASH (8kB) | FLASH (8kB) | FLASH (16kB) | FLASH (8kB) | FLASH (16kB) | FLASH (8kB) | FLASH (8kB) | FLASH (8kB) |
| Controller Series | CY8C20xx6A | CY8C20xx6A | CY8C20xx6A | CY8C20xx6A | CY8C20xx6A | CY8C20xx6A | CY8C20xx6 | CY8C20xx6A | CY8C20xx6 |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Interface | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI, USB | I²C, SPI | I²C, SPI | I²C, SPI |
| Number of I/O | 20 | 20 | 28 | 20 | 36 | 19 | 20 | 20 | 20 |
| Voltage - Supply | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V | 1.71V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TC) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

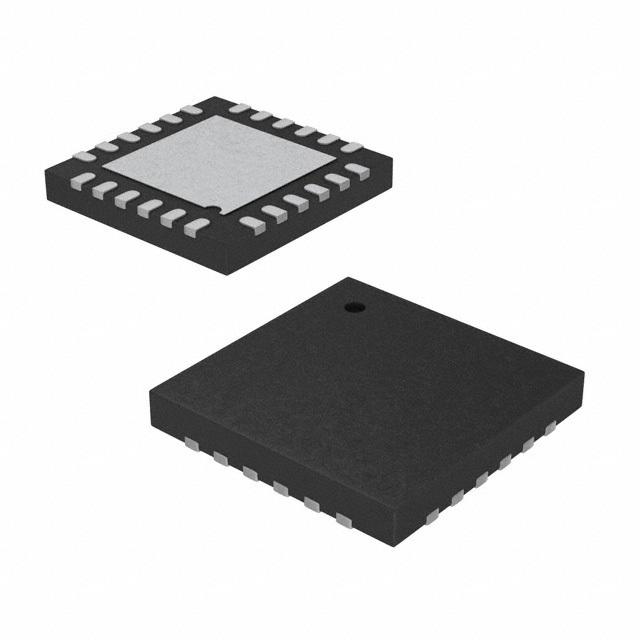

| Package / Case | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 32-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad | 24-UFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 32-QFN (5x5) | 24-QFN (4x4) | 48-QFN (6x6) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) |
