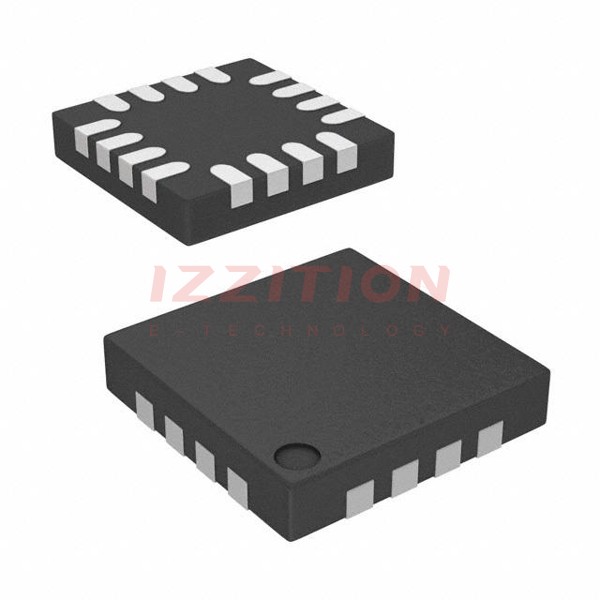

| Part Number | CY8C20234-12LKXI | CY8C20234-12LKXIT | CY8C20334-12LKXI | CY8C20434-12LKXI | CY8C20224-12LKXI | CY8C20234-12LKXA |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Core Processor | M8C | M8C | M8C | M8C | M8C | M8C |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 12MHz | 12MHz | 12MHz | 12MHz | 12MHz | 12MHz |
| Connectivity | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI |
| Peripherals | LVD, POR, WDT | LVD, POR, WDT | LVD, POR, WDT | LVD, POR, WDT | LVD, POR, WDT | LVD, POR, WDT |
| Number of I/O | 13 | 13 | 20 | 28 | 12 | 13 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V | 2.4V ~ 5.25V | 2.4V ~ 5.25V | 2.4V ~ 5.25V | 2.4V ~ 5.25V | 2.4V ~ 5.25V |
| Data Converters | - | - | - | - | - | - |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-UFQFN | 16-UFQFN | 24-UFQFN Exposed Pad | 32-UFQFN Exposed Pad | 16-UFQFN | 16-UFQFN |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 24-QFN (4x4) | 32-QFN (5x5) | 16-QFN (3x3) | 16-QFN (3x3) |
