Please send RFQ , we will respond immediately.

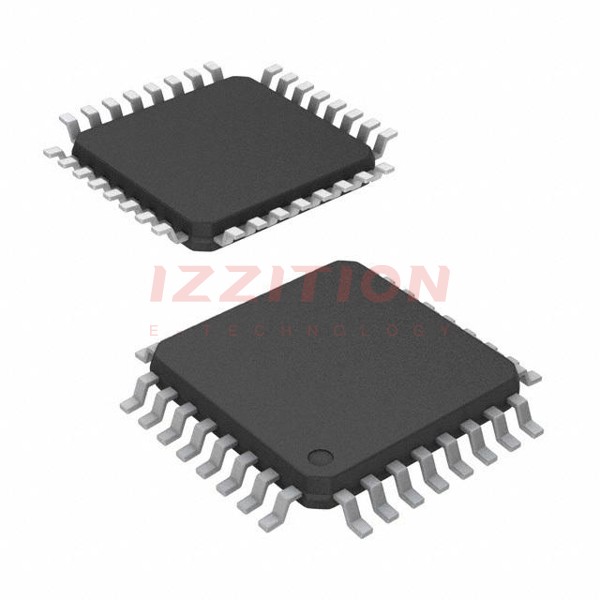

| Part Number | CY29946AXCT | CY29946AXIT | CY29947AXCT | CY29948AXCT | CY29949AXCT | CY29940AXCT | CY29942AXCT | CY29946AXC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Fanout Buffer (Distribution), Divider, Multiplexer | Fanout Buffer (Distribution), Divider, Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Divider, Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution) | Fanout Buffer (Distribution), Divider, Multiplexer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:10 | 2:10 | 2:9 | 2:12 | 1:15 | 1:18 | 1:18 | 2:10 |
| Differential - Input:Output | No/Yes | No/Yes | Yes/No | Yes/No | Yes/Yes | Yes/No | No/No | No/Yes |
| Input | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVPECL, LVTTL | LVCMOS, LVPECL, LVTTL | LVCMOS, LVPECL, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL |
| Output | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL |
| Frequency - Max | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Voltage - Supply | 2.375V ~ 3.63V | 2.375V ~ 3.63V | 2.375V ~ 3.63V | 2.375V ~ 3.63V | 2.375V ~ 3.6V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-TQFP | 32-TQFP | 32-TQFP | 32-TQFP | 52-TQFP | 32-LQFP | 32-LQFP | 32-TQFP |
| Supplier Device Package | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) | 52-TQFP (10x10) | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) |
