Infineon Technologies-CY2545QC010 - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers Product Specifications and Latest Quotes

Part Number	CY2545QC010	CY2545QC020	CY2545QC010T	CY2545C010
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Cypress Semiconductor Corp
Product Status	Active	Active	Active	Obsolete
Type	Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator	Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator	Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator	-
PLL	Yes with Bypass	Yes with Bypass	Yes with Bypass	-
Input	Clock, Crystal	Clock, Crystal	Clock, Crystal	-
Output	Clock	Clock	Clock	-
Number of Circuits	4	4	4	-
Ratio - Input:Output	2:8	2:8	2:8	-
Differential - Input:Output	No/No	No/No	No/No	-
Frequency - Max	166MHz	166MHz	166MHz	-
Divider/Multiplier	Yes/No	Yes/No	Yes/No	-
Voltage - Supply	2.25V ~ 3.6V	2.25V ~ 3.6V	2.25V ~ 3.6V	-
Operating Temperature	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	-
Package / Case	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	-
Supplier Device Package	24-QFN (4x4)	24-QFN (4x4)	24-QFN (4x4)	-

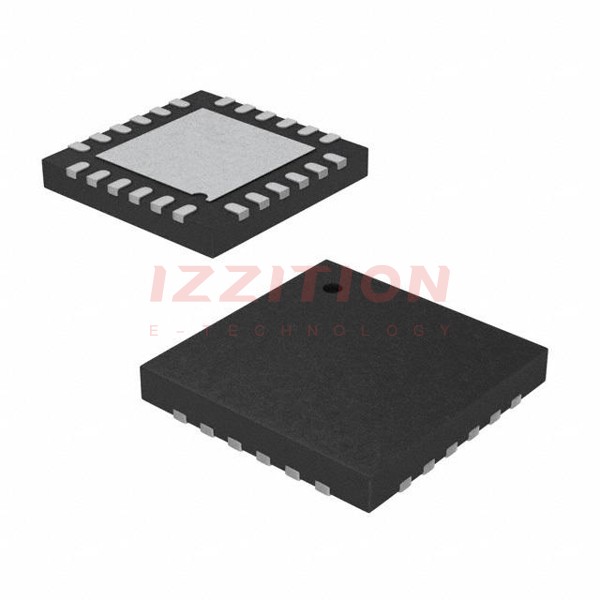

Infineon Technologies CY2545QC010

Type:	Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator
PLL:	Yes with Bypass
Input:	Clock, Crystal
Output:	Clock
Number of Circuits:	4
Ratio - Input:Output:	2:8
Differential - Input:Output:	No/No
Frequency - Max:	166MHz
Divider/Multiplier:	Yes/No
Voltage - Supply:	2.25V ~ 3.6V
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-UFQFN Exposed Pad
Supplier Device Package:	24-QFN (4x4)
