Infineon Technologies-CY2544QC013 - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers Product Specifications and Latest Quotes

Part Number	CY2544QC013	CY2544QC013T	CY2544QC014	CY2544QC016	CY2544QC023	CY2544C013	CY2544QC011
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Rochester Electronics, LLC	Infineon Technologies
Product Status	Active	Active	Active	Active	Active	Obsolete	Active
Type	Clock Generator	Clock Generator	Clock Generator	Clock Generator	Clock Generator	-	Clock Generator
PLL	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass	-	Yes with Bypass
Input	LVCMOS, Crystal	LVCMOS, Crystal	LVCMOS, Crystal	LVCMOS, Crystal	LVCMOS, Crystal	-	LVCMOS, Crystal
Output	Clock	Clock	Clock	Clock	Clock	-	Clock
Number of Circuits	4	4	4	4	4	-	4
Ratio - Input:Output	1:9	1:9	1:9	1:9	1:9	-	1:9
Differential - Input:Output	No/No	No/No	No/No	No/No	No/No	-	No/No
Frequency - Max	166MHz	166MHz	166MHz	166MHz	166MHz	-	166MHz
Divider/Multiplier	Yes/No	Yes/No	Yes/No	Yes/No	Yes/No	-	Yes/No
Voltage - Supply	2.25V ~ 3.6V	2.25V ~ 3.6V	2.25V ~ 3.6V	2.25V ~ 3.6V	2.25V ~ 3.6V	-	2.25V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	-	0°C ~ 70°C (TA)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	-	Surface Mount
Package / Case	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	24-UFQFN Exposed Pad	-	24-UFQFN Exposed Pad
Supplier Device Package	24-QFN (4x4)	24-QFN (4x4)	24-QFN (4x4)	24-QFN (4x4)	24-QFN (4x4)	-	24-QFN (4x4)

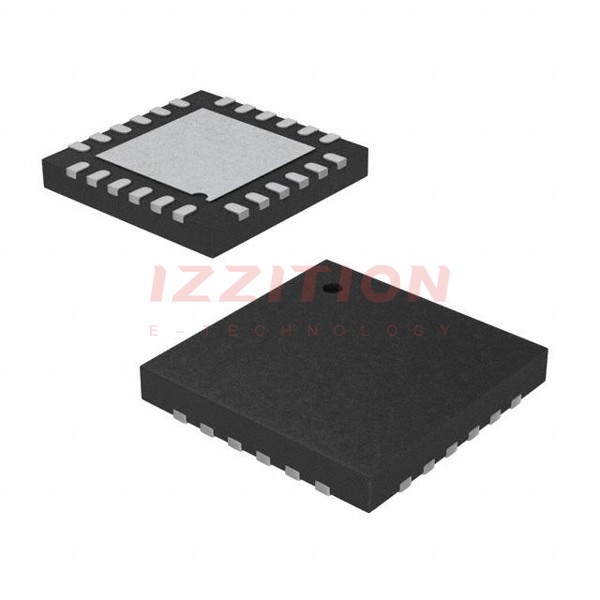

Infineon Technologies CY2544QC013
