Please send RFQ , we will respond immediately.

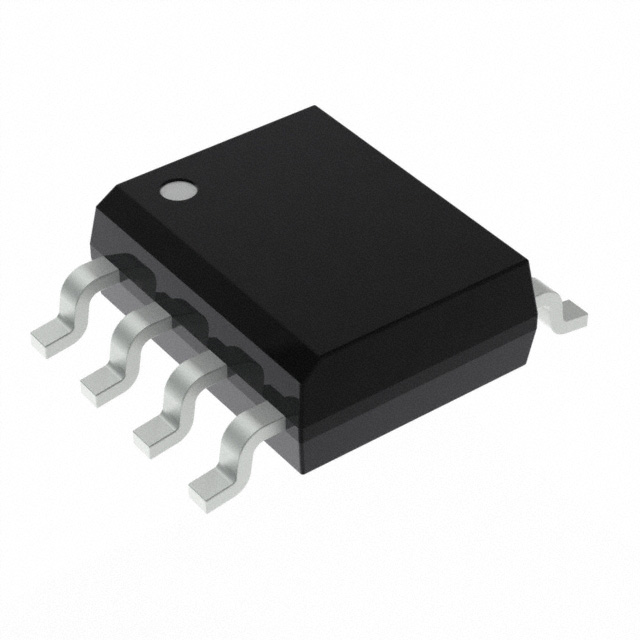

| Part Number | CY2305CSXI-1HT | CY2305SXI-1HT | CY2305CSXI-1T | CY2309CSXI-1HT | CY2305CSXA-1HT | CY2305CSXC-1HT | CY2305CSXI-1H |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active |
| Type | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer | Fanout Buffer (Distribution), Zero Delay Buffer |
| PLL | Yes | Yes | Yes | Yes with Bypass | Yes | Yes | Yes |
| Input | LVCMOS, LVTTL | Clock | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL | LVCMOS, LVTTL |
| Output | LVCMOS | Clock | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:5 | 1:5 | 1:5 | 1:9 | 1:5 | 1:5 | 1:5 |
| Differential - Input:Output | No/No | No/No | No/No | No/No | No/No | No/No | No/No |
| Frequency - Max | 133.33MHz | 133.33MHz | 133.33MHz | 133.33MHz | 133.33MHz | 133.33MHz | 133.33MHz |
| Divider/Multiplier | No/No | No/No | No/No | No/No | No/No | No/No | No/No |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 16-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
