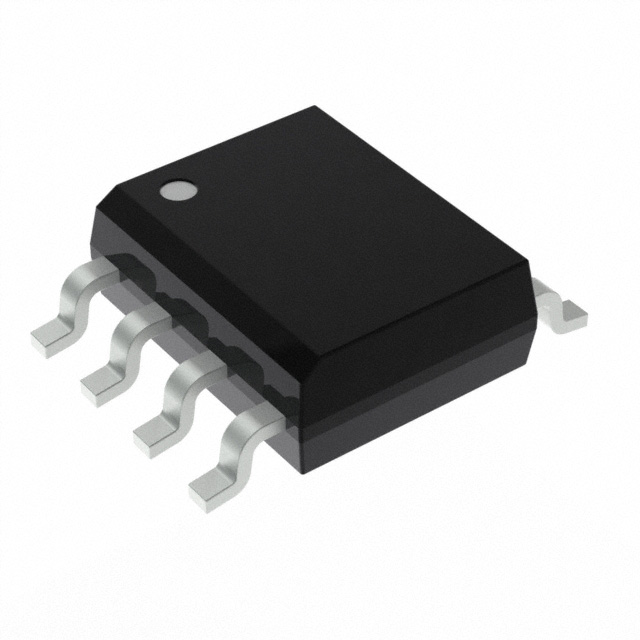

| Part Number | CY22800FXC-014A | CY22800FXC-015A | CY22800FXC-016A | CY22800FXC-017A | CY22800FXC-018A | CY22800FXC-019A | CY22800FXC-004A | CY22800FXC-010A | CY22800FXC-011A | CY22800FXC-012A | CY22800FXC-013A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock Generator, Fanout Distribution | Fanout Buffer (Distribution), Spread Spectrum Clock Generator | Fanout Buffer (Distribution), Spread Spectrum Clock Generator | Fanout Buffer (Distribution), Spread Spectrum Clock Generator | Fanout Buffer (Distribution), Spread Spectrum Clock Generator | Fanout Buffer (Distribution), Spread Spectrum Clock Generator | Clock Generator, Fanout Distribution | Clock Generator, Fanout Distribution | Clock Generator, Fanout Distribution | Clock Generator, Fanout Distribution | Clock Generator, Fanout Distribution |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal | Clock, Crystal |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 |
| Differential - Input:Output | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No |
| Frequency - Max | 125MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 200MHz | 125MHz | 133.33MHz | 125MHz | 133.33MHz |
| Divider/Multiplier | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Voltage - Supply | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V | 3.14V ~ 3.47V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
