| Part Number | CHL8550CRT | CHL8510CRT |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 10.8V ~ 13.2V |
| Logic Voltage - VIL, VIH | 0.8V, 1V | 0.8V, 1V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 3A, 4A |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V | 35 V |
| Rise / Fall Time (Typ) | 10ns, 8ns | 21ns, 18ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

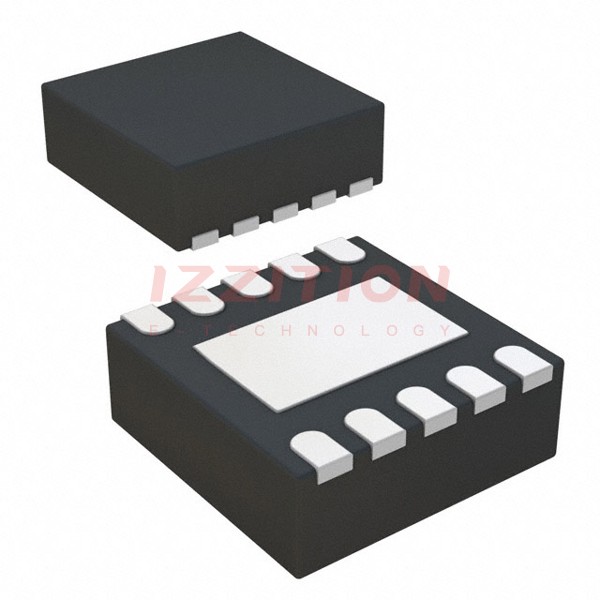

| Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) | 10-DFN (3x3) |
