| Part Number | C165L25MHABXQMA1 | C165L25MHAFXQMA1 | C165L25MHABXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | C166 | C166 | C166 |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 25MHz | 25MHz | 25MHz |
| Connectivity | EBI/EMI, SPI, UART/USART | EBI/EMI, SPI, UART/USART | EBI/EMI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 77 | 77 | 77 |
| Program Memory Size | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | - | - | - |
| Oscillator Type | External | External | External |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

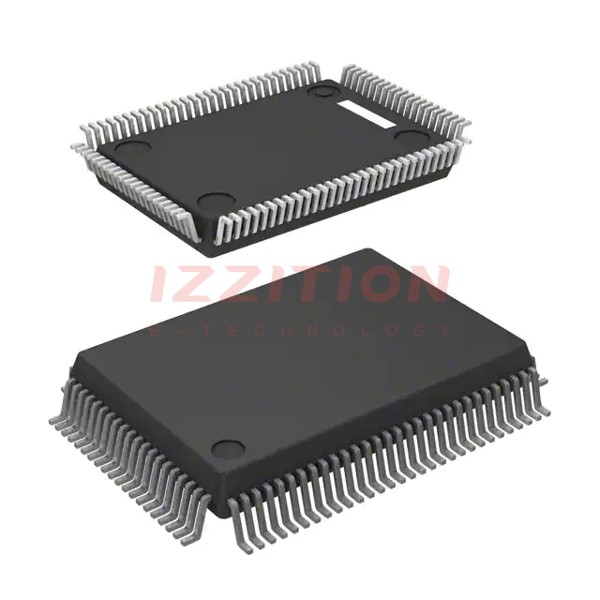

| Package / Case | 100-BQFP | 100-BQFP | 100-BQFP |
| Supplier Device Package | P-MQFP-100 | P-MQFP-100 | P-MQFP-100 |
