| Part Number | C164CI8EMCBFXUMA1 | C164CI8EMDBFXUMA1 | C164CI8EMCBKXUMA1 | C164CI8EMCBFXQMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | C166 | C166 | C166 | C166 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | CANbus, EBI/EMI, SPI, SSC, UART/USART | CANbus, EBI/EMI, SPI, SSC, UART/USART | CANbus, EBI/EMI, SPI, SSC, UART/USART | CANbus, EBI/EMI, SPI, SSC, UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 59 | 59 | 59 | 59 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | OTP | OTP | OTP | OTP |
| EEPROM Size | - | - | - | - |
| RAM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.5V | 4.75V ~ 5.5V | 4.75V ~ 5.5V | 4.75V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

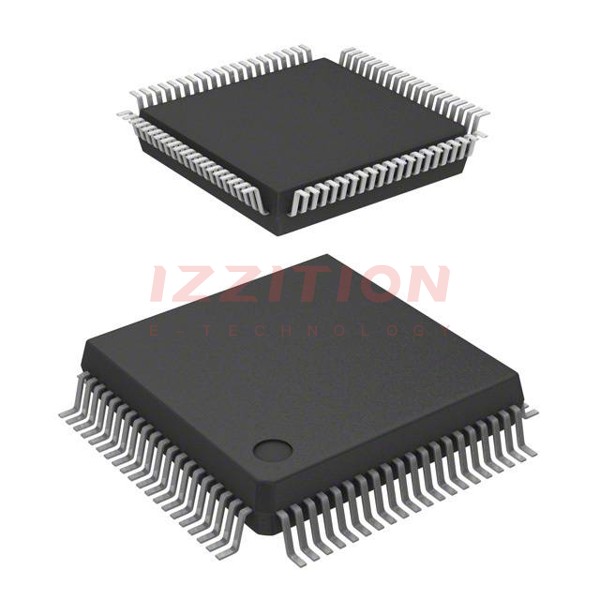

| Package / Case | 80-QFP | 80-QFP | 80-QFP | 80-QFP |
| Supplier Device Package | PG-MQFP-80-7 | PG-MQFP-80-7 | PG-MQFP-80-7 | PG-MQFP-80-7 |
