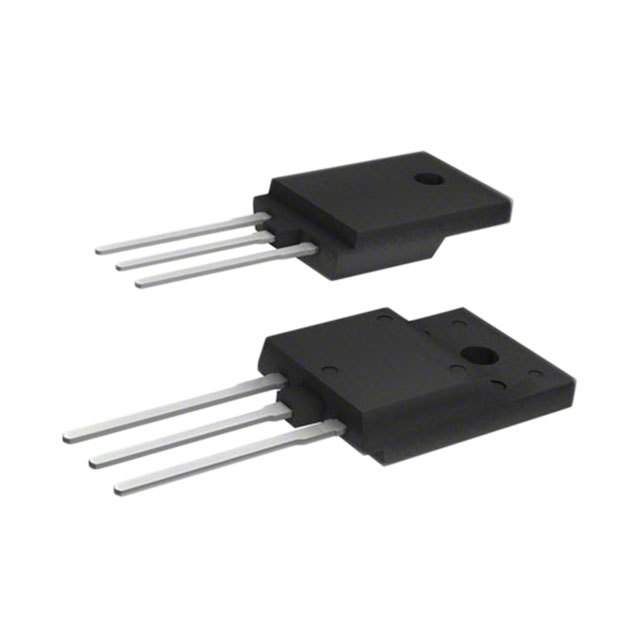

| Part Number | BUZ80A | BUZ30A |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Tc) | 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 2A, 10V | 130mOhm @ 13.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1350 pF @ 25 V | 1900 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 100W (Tc) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220AB | PG-TO220-3-1 |
| Package / Case | TO-220-3 | TO-220-3 |
