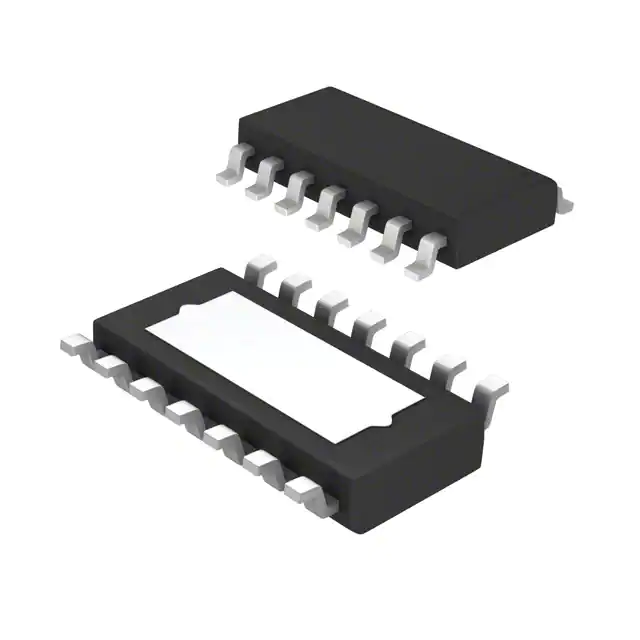

| Part Number | BTT61002EKAXUMA1 | BTT61002ERAXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 5V ~ 36V | 5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 2.2A | 2.2A |
| Rds On (Typ) | 100mOhm | 100mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | - | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-14-40-EP | PG-TDSO-14-21 |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad |
