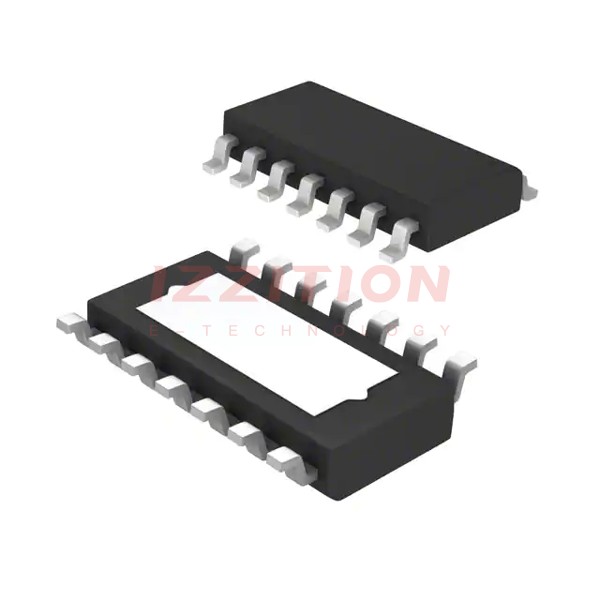

| Part Number | BTT60101EKAXUMA1 | BTT60101ERAXUMA1 | BTT60501EKAXUMA1 | BTT60301EKAXUMA1 | BTT60201EKAXUMA1 | BTT60101EKBXUMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 5V ~ 36V | 5V ~ 36V | 5V ~ 36V | 5V ~ 36V | 5V ~ 36V | 5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 9A | 9A | 4.5A | 6A | 7A | 9A |
| Rds On (Typ) | 10mOhm | 10mOhm | 50mOhm | 31mOhm | 20mOhm | 10mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | - | Non-Inverting |
| Features | - | - | - | - | - | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-14-47-EP | PG-TDSO-14-11 | PG-DSO-14-47-EP | PG-DSO-14-47-EP | PG-DSO-14-47-EP | PG-DSO-14-47-EP |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-SOIC (0.154", 3.90mm Width) Exposed Pad |
