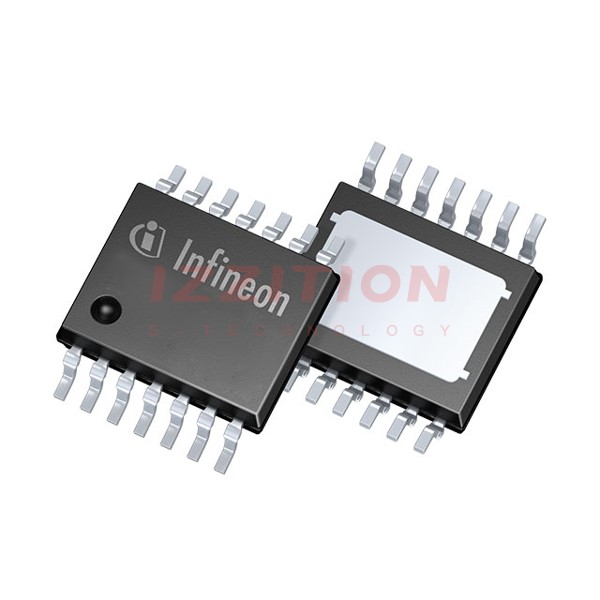

| Part Number | BTS72002EPCXUMA1 | BTS72002EPAXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 6V ~ 18V | 6V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 1.2A | 1.2A |
| Rds On (Typ) | 66.5mOhm | 66.5mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | - | - |
| Fault Protection | Over Current, Over Voltage, Short Circuit, UVLO | Over Current, Over Voltage, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TSDSO-14-22 | PG-TSDSO-14-22 |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
