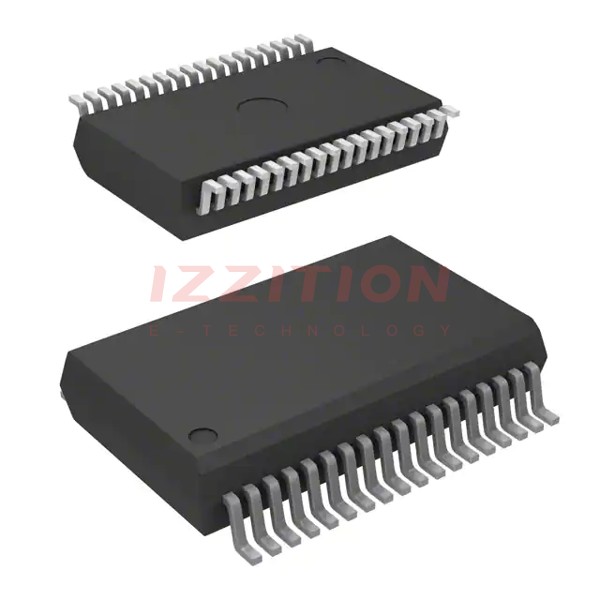

| Part Number | BTS6480SFXUMA1 | BTS5480SFXUMA1 | BTS6460SFXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 4 | 4 | 4 |
| Ratio - Input:Output | 3:4 | 3:4 | 3:4 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI |
| Voltage - Load | 4.5V ~ 28V | 8V ~ 17V | 8V ~ 17V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | - | - | - |
| Rds On (Typ) | 3.5mOhm, 11mOhm | 3.5mOhm, 11mOhm | 3.5mOhm, 11mOhm |
| Input Type | - | - | - |
| Features | Auto Restart | Slew Rate Controlled | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36-43 | PG-DSO-36-43 | PG-DSO-36-43 |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) | 36-BSSOP (0.295", 7.50mm Width) | 36-BSSOP (0.295", 7.50mm Width) |
