Please send RFQ , we will respond immediately.

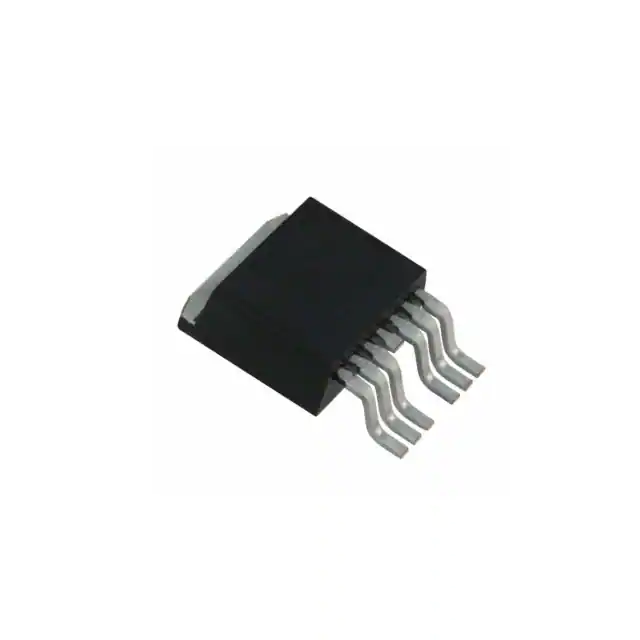

| Part Number | BTS611L1 E3128A | BTS611L1E3128A | BTS621L1 E3128A |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| Switch Type | General Purpose | - | General Purpose |
| Number of Outputs | 2 | - | 2 |
| Ratio - Input:Output | 1:1 | - | 1:1 |
| Output Configuration | High Side | - | High Side |
| Output Type | N-Channel | - | N-Channel |
| Interface | On/Off | - | On/Off |
| Voltage - Load | 5V ~ 34V | - | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required | - | Not Required |
| Current - Output (Max) | 1.8A | - | 3.5A |
| Rds On (Typ) | 160mOhm | - | 80mOhm |
| Input Type | Non-Inverting | - | Non-Inverting |
| Features | Auto Restart, Status Flag | - | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount |
| Supplier Device Package | PG-TO263-7-2 | - | PG-TO263-7-2 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | - | TO-263-7, D²Pak (6 Leads + Tab) |
