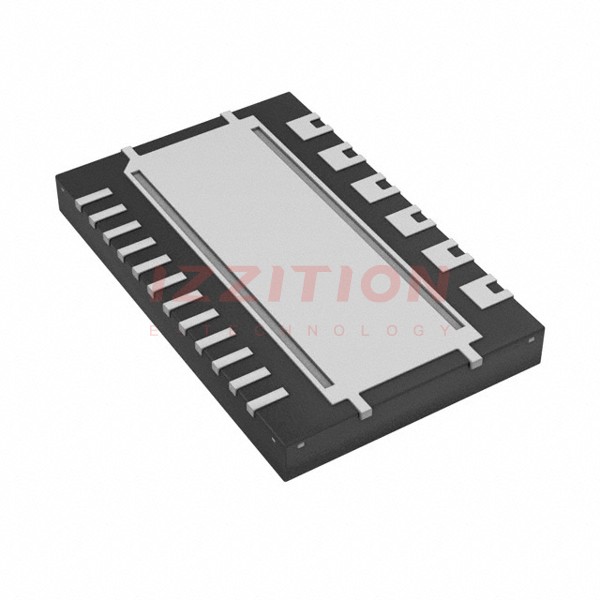

| Part Number | BTS56033LBBAUMA1 | BTS56033LBAAUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 6 | 6 |
| Ratio - Input:Output | 2:3 | 2:3 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 5.5V ~ 28V | 5.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V | 3.8V ~ 5.5V |
| Current - Output (Max) | - | - |
| Rds On (Typ) | 39mOhm, 110mOhm | 39mOhm, 110mOhm |
| Input Type | - | - |
| Features | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TSON-24-3 | PG-TSON-24-3 |
| Package / Case | 24-PowerTDFN | 24-PowerTDFN |
