Please send RFQ , we will respond immediately.
| Part Number | BTS54220LBBAUMA1 | BTS54220LBEAUMA1 | BTS54220LBFAUMA1 | BTS54220LBAAUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 4 | 4 | 4 | 4 |
| Ratio - Input:Output | 1:1 | 1:2 | 1:2 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI | SPI |
| Voltage - Load | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 3.8V ~ 5.5V |
| Current - Output (Max) | 5A | 5A | 5A | - |
| Rds On (Typ) | 9mOhm | 9mOhm | 9mOhm | 9mOhm, 27mOhm |
| Input Type | - | - | - | - |
| Features | - | - | - | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

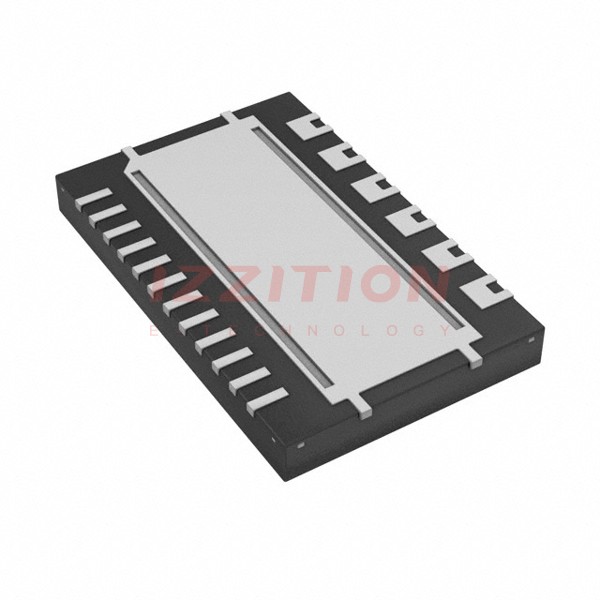

| Supplier Device Package | PG-TSON-24-3 | PG-TSON-24-3 | PG-TSON-24-3 | PG-TSON-24-3 |
| Package / Case | 24-PowerTDFN | 24-PowerTDFN | 24-PowerTDFN | 24-PowerTDFN |
