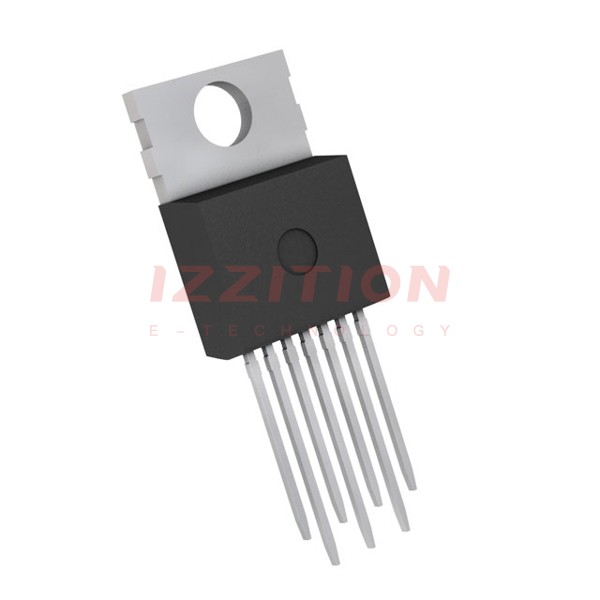

| Part Number | BTS50090-1TMB | BTS50080-1TMB | BTS50090-1TMA |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| Switch Type | General Purpose | - | General Purpose |
| Number of Outputs | 1 | - | 1 |
| Ratio - Input:Output | 1:1 | - | 1:1 |
| Output Configuration | High Side | - | High Side |
| Output Type | N-Channel | - | N-Channel |
| Interface | On/Off | - | On/Off |
| Voltage - Load | 5.5V ~ 38V | - | 5.5V ~ 38V |
| Voltage - Supply (Vcc/Vdd) | Not Required | - | Not Required |
| Current - Output (Max) | 9A | - | 9A |
| Rds On (Typ) | 8mOhm | - | 8mOhm |
| Input Type | Non-Inverting | - | Non-Inverting |
| Features | Auto Restart | - | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | - | Surface Mount |
| Supplier Device Package | PG-TO220-7-12 | - | PG-TO220-7-4 |
| Package / Case | TO-220-7 | - | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
