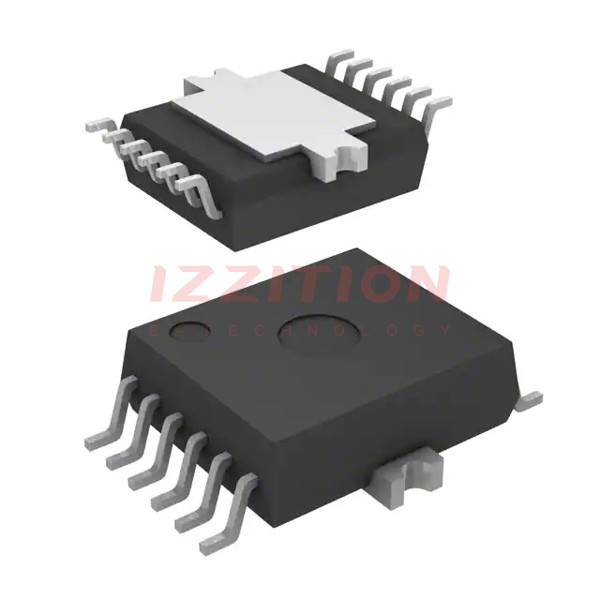

| Part Number | BTS500801EGAAUMA1 | BTS500501EGAAUMA1 | BTS500601EGAAUMA1 | BTS500701EGAAUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 9V ~ 16V | 6V ~ 28V | 9V ~ 16V | 9V ~ 16V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 13A | 16A | 15A | 14A |
| Rds On (Typ) | 8mOhm | 5mOhm | 6mOhm | 7mOhm |
| Input Type | - | - | - | - |
| Features | Auto Restart | Auto Restart | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-12-16 | PG-DSO-12-16 | PG-DSO-12-16 | PG-DSO-12-16 |
| Package / Case | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | 12-BSOP (0.295", 7.50mm Width) Exposed Pad | 12-BSOP (0.295", 7.50mm Width) Exposed Pad |
