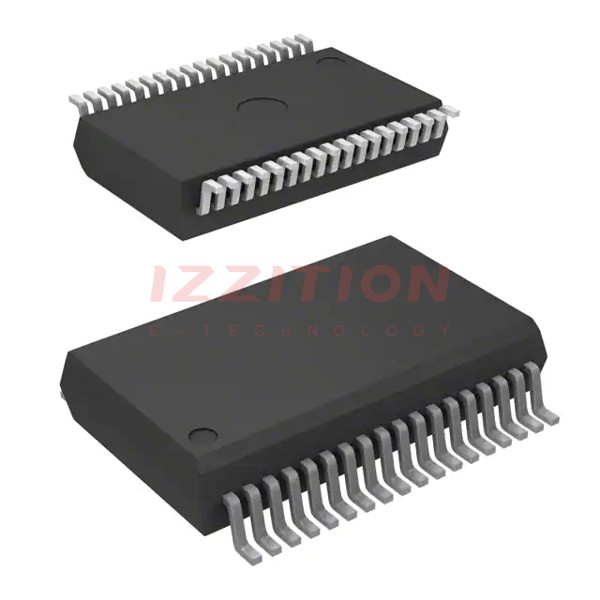

| Part Number | BTS500402SFAXUMA1 | BTS500402SFAXUMA2 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | Parallel | Parallel |
| Voltage - Load | 6V ~ 28V | 6V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output (Max) | 11A | 11A |
| Rds On (Typ) | 4mOhm | 4mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36-44 | PG-DSO-36-44 |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) | 36-BSSOP (0.295", 7.50mm Width) |
