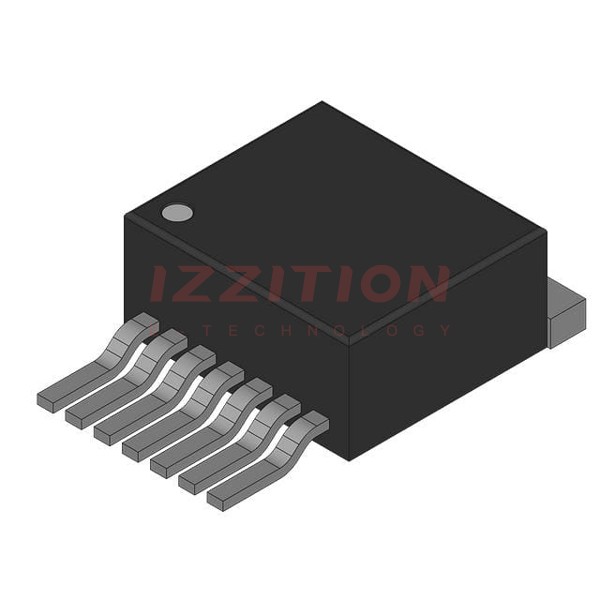

| Part Number | BTS282ZE3180AATMA1 | BTS282ZE3180AATMA2 | BTS282ZE3180ANTMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs | Active |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 49 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 80A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | - | 6.5mOhm @ 36A, 10V | - |
| Vgs(th) (Max) @ Id | - | 2V @ 240µA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 232 nC @ 10 V | - |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 4800 pF @ 25 V | - |
| FET Feature | - | Temperature Sensing Diode | - |
| Power Dissipation (Max) | - | 300W (Tc) | - |
| Operating Temperature | - | -40°C ~ 175°C (TJ) | - |
| Mounting Type | - | Surface Mount | - |
| Supplier Device Package | - | PG-TO263-7-1 | - |
| Package / Case | - | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | - |
