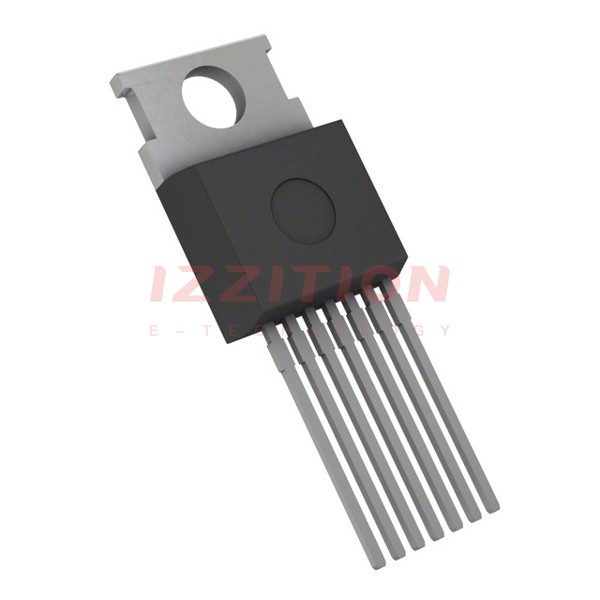

| Part Number | BTS282Z E3230 | BTS282ZE3230 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | - |
| Technology | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | 49 V | - |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 36A, 10V | - |
| Vgs(th) (Max) @ Id | 2V @ 240µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 232 nC @ 10 V | - |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 25 V | - |
| FET Feature | Temperature Sensing Diode | - |
| Power Dissipation (Max) | 300W (Tc) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | - |
| Supplier Device Package | P-TO220-7-230 | - |
| Package / Case | TO-220-7 | - |
