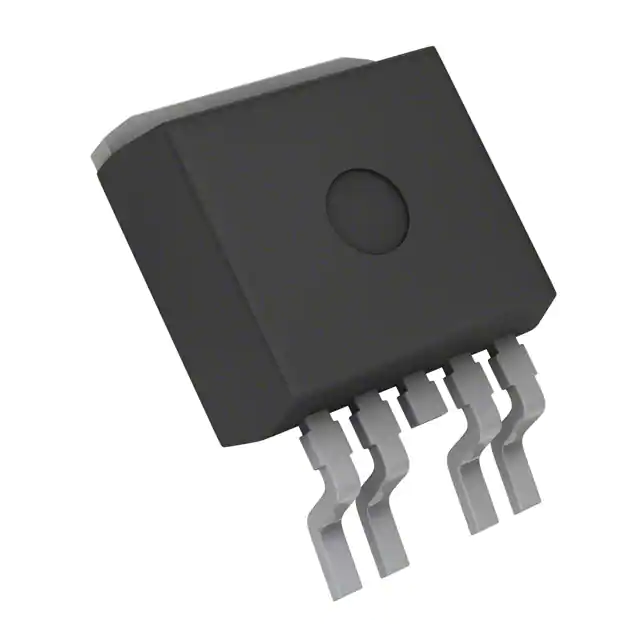

| Part Number | BTS244Z E3062A | BTS247Z E3062A |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) | 33A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 19A, 10V | 18mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 130µA | 2V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V | 90 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2660 pF @ 25 V | 1730 pF @ 25 V |
| FET Feature | Temperature Sensing Diode | Temperature Sensing Diode |
| Power Dissipation (Max) | 170W (Tc) | 120W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO220-5-62 | PG-TO263-5-2 |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
