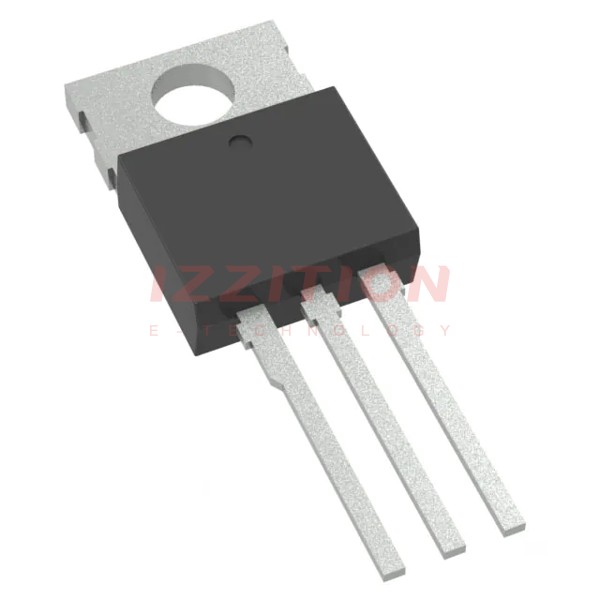

| Part Number | BTS141BKSA1 | BTS141NKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 60V (Max) | 60V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 12A | 12A |
| Rds On (Typ) | 25mOhm | 25mOhm |
| Input Type | - | Non-Inverting |
| Features | - | Auto Restart, Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3-1 | PG-TO220-3-1 |
| Package / Case | TO-220-3 | TO-220-3 |
