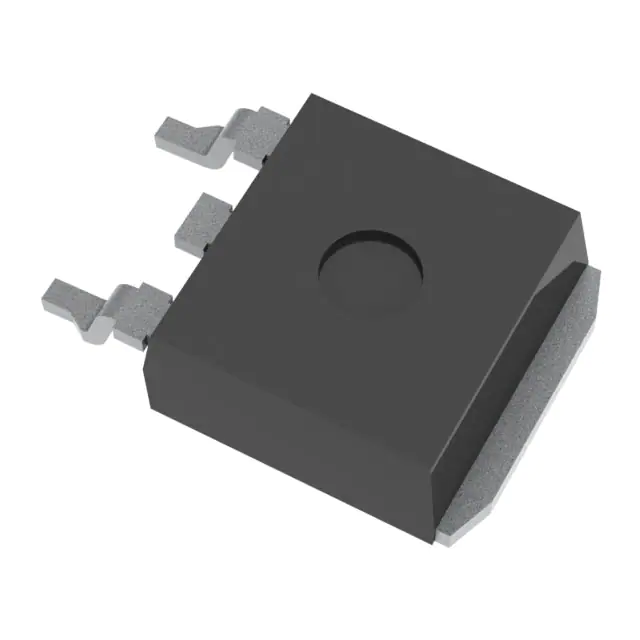

| Part Number | BTS133TCAUMA1 | BTS133TCBUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 60V | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 7A | 7A |
| Rds On (Typ) | 40mOhm | 40mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Auto Restart, Slew Rate Controlled | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-3-2 | PG-TO263-3-2 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
