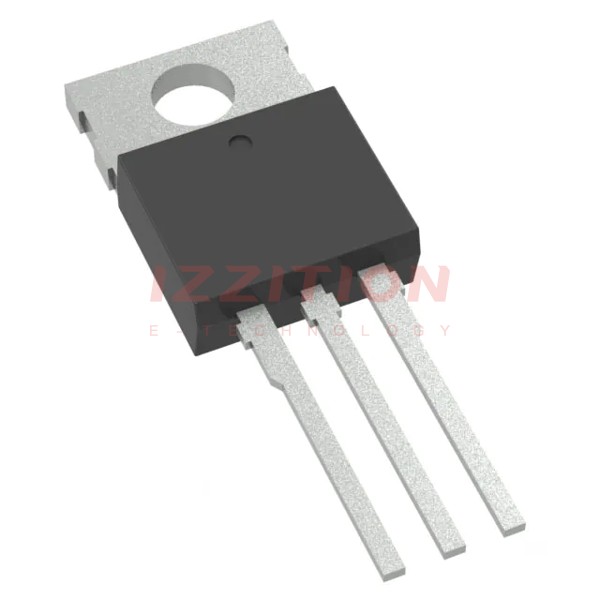

| Part Number | BTS133BKSA1 | BTS133NKSA1 | BTS133AKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Not For New Designs |
| Switch Type | General Purpose | - | General Purpose |
| Number of Outputs | 1 | - | 1 |
| Ratio - Input:Output | 1:1 | - | 1:1 |
| Output Configuration | Low Side | - | Low Side |
| Output Type | N-Channel | - | N-Channel |
| Interface | On/Off | - | On/Off |
| Voltage - Load | 60V (Max) | - | 60V |
| Voltage - Supply (Vcc/Vdd) | Not Required | - | Not Required |
| Current - Output (Max) | 7A | - | 7A |
| Rds On (Typ) | 40mOhm | - | 40mOhm |
| Input Type | Non-Inverting | - | Non-Inverting |
| Features | - | - | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | - | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | - | Through Hole |
| Supplier Device Package | PG-TO220-3-1 | - | PG-TO220-3-1 |
| Package / Case | TO-220-3 | - | TO-220-3 |
