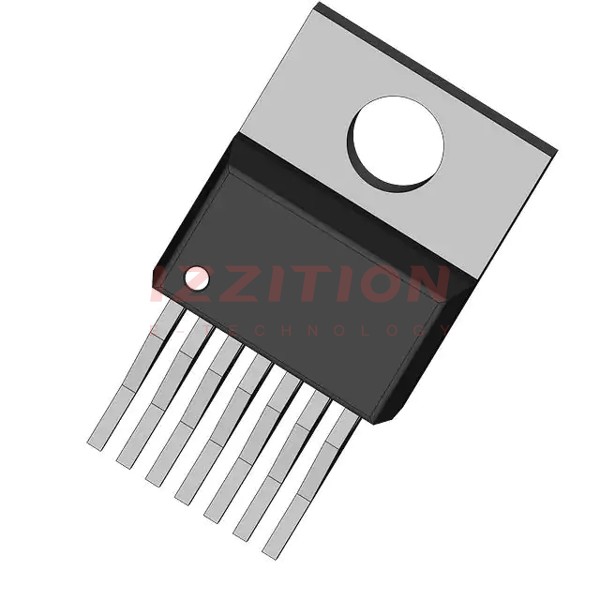

| Part Number | BTN7970S | BTN7930S | BTN7960S |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Unipolar | - | - |
| Motor Type - AC, DC | - | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge |
| Interface | - | Parallel | On/Off |
| Technology | DMOS | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - |
| Applications | Automotive | General Purpose | General Purpose |
| Current - Output | 90A | 32A | 47A |
| Voltage - Supply | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V |
| Voltage - Load | - | 8V ~ 18V | 8V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 | TO-220-7 |
| Supplier Device Package | P-TO220-7-11 | PG-TO220-7-12 | PG-TO220-7-12 |
