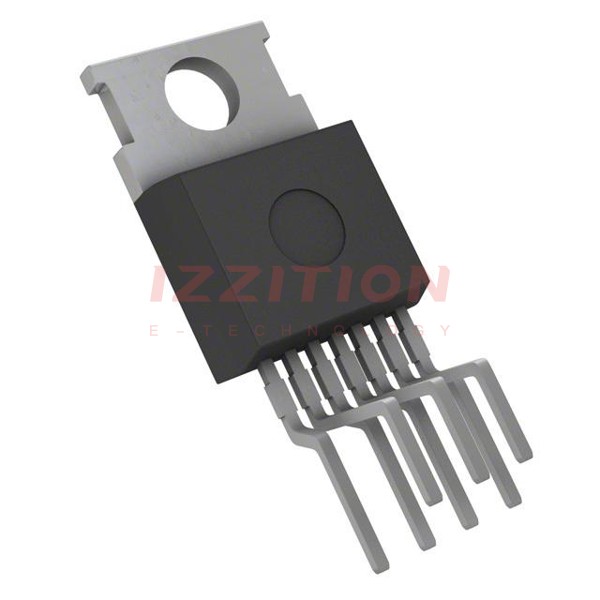

| Part Number | BTN7970PAKSA1 | BTN7970SAKSA1 | BTN7930PAKSA1 | BTN7960PAKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Interface | Parallel | Parallel | Parallel | On/Off |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 70A | 70A | 32A | 47A |
| Voltage - Supply | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V |
| Voltage - Load | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 | TO-220-7 Formed Leads | TO-220-7 Formed Leads |
| Supplier Device Package | P-TO220-7-11 | PG-TO220-7-12 | P-TO220-7-11 | P-TO220-7-11 |
