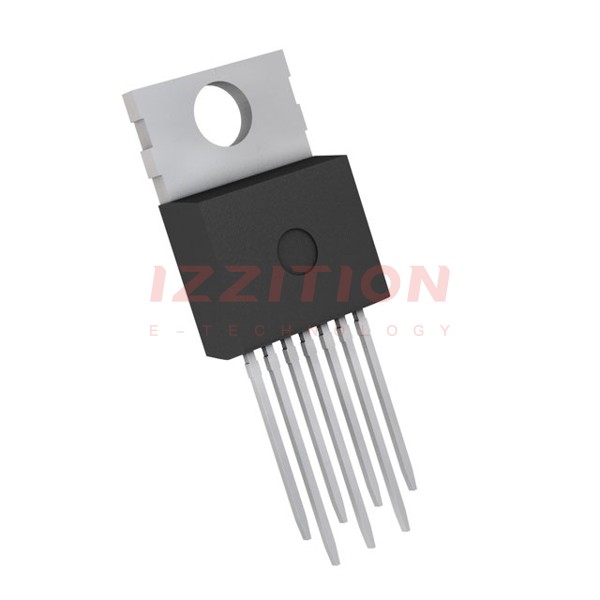

| Part Number | BTN7960S | BTN7970S | BTN7930S |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | Unipolar | - |
| Motor Type - AC, DC | Brushed DC | - | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge |
| Interface | On/Off | - | Parallel |
| Technology | Power MOSFET | DMOS | Power MOSFET |
| Step Resolution | - | - | - |
| Applications | General Purpose | Automotive | General Purpose |
| Current - Output | 47A | 90A | 32A |
| Voltage - Supply | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V |
| Voltage - Load | 8V ~ 18V | - | 8V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-7 | TO-220-7 Formed Leads | TO-220-7 |
| Supplier Device Package | PG-TO220-7-12 | P-TO220-7-11 | PG-TO220-7-12 |
