Infineon Technologies-BTN70301EPAXUMA1 - PMIC - Full, Half-Bridge Drivers Product Specifications and Latest Quotes

Output Configuration:	Half Bridge
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	SMART7
Rds On (Typ):	20mOhm LS, 12mOhm HS
Current - Output / Channel:	7A
Current - Peak Output:	17A
Voltage - Supply:	6V ~ 18V
Voltage - Load:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Diagnostic Enable, Enable, SENSE
Fault Protection:	Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	PG-TSDSO-14

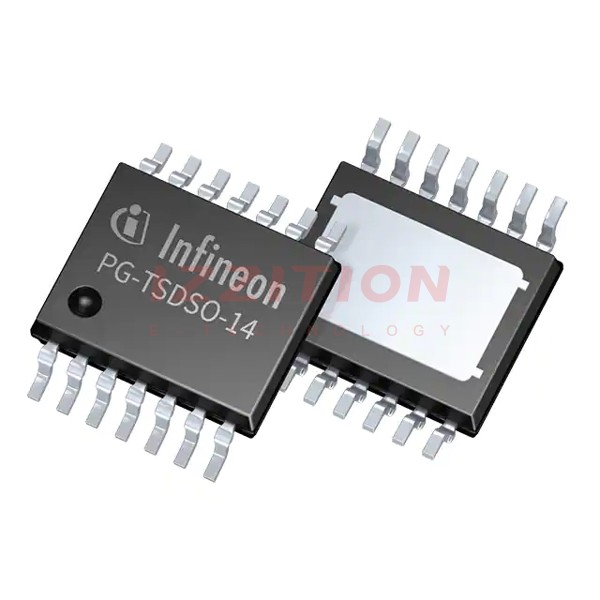

Infineon Technologies BTN70301EPAXUMA1
