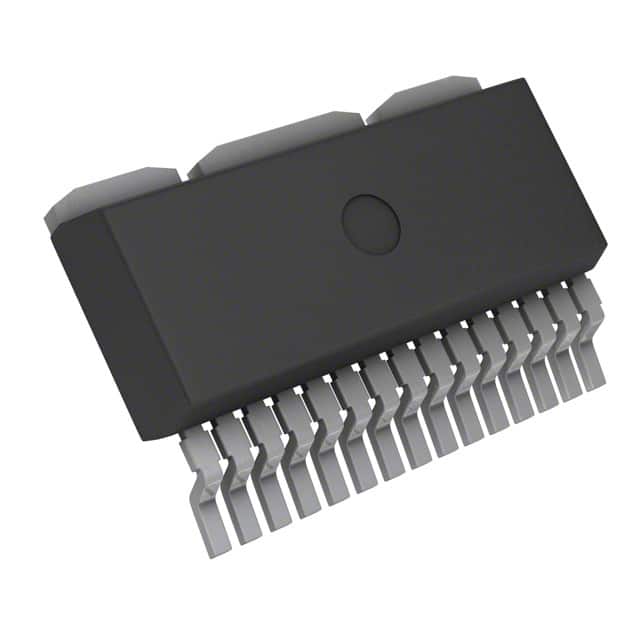

| Part Number | BTM7750GPAUMA1 | BTM7710GPAUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (2) | Half Bridge (2) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | DMOS | DMOS |
| Rds On (Typ) | 45mOhm LS, 70mOhm HS | 40mOhm LS, 70mOhm HS |
| Current - Output / Channel | - | - |
| Current - Peak Output | 12A | 15A |
| Voltage - Supply | 1.8V ~ 42V | 1.8V ~ 42V |
| Voltage - Load | 1.8V ~ 42V | 1.8V ~ 42V |
| Operating Temperature | -40°C ~ 110°C (TJ) | -40°C ~ 110°C (TJ) |
| Features | Status Flag | Status Flag |
| Fault Protection | Over Temperature, Short Circuit, UVLO | Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) | TO-263-18 (15 Leads + 3 Tabs) |
| Supplier Device Package | PG-TO263-15-1 | PG-TO263-15-1 |
