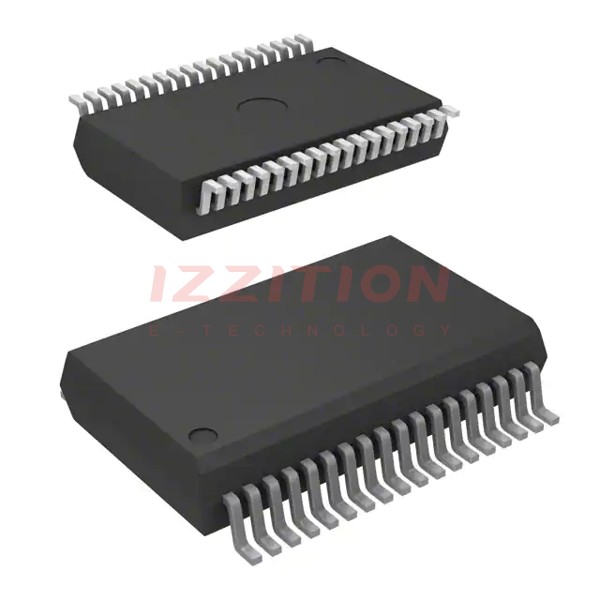

| Part Number | BTM7742GXUMA1 | BTM7745GXUMA1 | BTM7752GXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Interface | Parallel | Parallel | Parallel |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | 12A | 12A | 12A |
| Voltage - Supply | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V |
| Voltage - Load | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) | 36-BSSOP (0.295", 7.50mm Width) | 36-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | - | - | PG-DSO-36 |
